Superior Transmission Electric Chain Hoist Capacity 0.25 Ton Type SHH-A-003-1S Lift Chain 6 Metre

Superior Transmission Electric Chain Hoist Capacity 0,25 Ton type SHH-A-003-1S Duta Perkasa

Superior Electric Hoist - Type SHH-A is a tool commonly used as a tool for lifting or moving loads with light weight to medium heavy loads, with a position perpendicular (vertical) and the work system uses electrical energy as its driving energy, lifting tool or This carrier is commonly used in areas where industry, factories, and workshops are located.

The location of the Chain Hoist is above, close to the roof of the room, the support is the left and right sides of the building itself, equipped with wheels and rail tracks to move forward and backward to support the work process.

Features

- With Overlimit Clutch Protection
- With DC Brake (Smart Brake Technology)- FEC Load Chain (Quality Chain is Supplied by FEC JAPAN)- M5 Duty + Limit Clutch + DC Brakes

Specification

Brand : SuperiorCategory : Electric Chain HoistType : SHH-A-003-1SCapacity (t) : 0.25Lift Chain (m) : 6

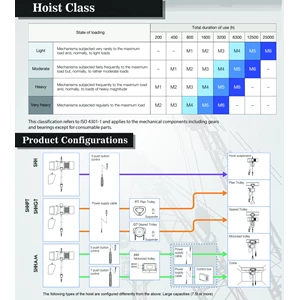

Classification FEM/ISO : 2Am/M5Duty Rating (ED) : 40%Lifting Speed (m/min) : 7.0Hoist Motor (Kw) : 0.9Load Chain Dimension (mm) : 5x15Load Chain Falls : 1Net Weight (Kg) With 3m Load Chain : 44 (Exclude Packaging)

- Beam Flange Request is Optional
- Single phase is optional- Above parameter is for 380V - 415V / 50Hz / 3PH Standard
